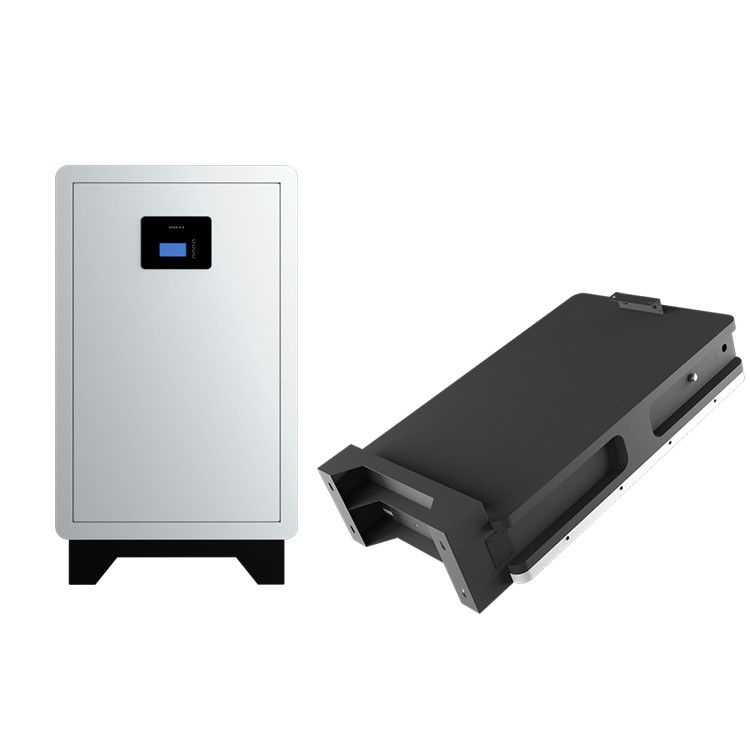

LFP 200ah Grade A ESS Lithium Ion Batteries Lifepo4 5kw 10kw Home Use Energy Storage Battery
LFP 200ah Grade A ESS Lithium Ion Batteries Lifepo4 5kw 10kw Home Use Energy Storage Battery
LFP 200ah Grade A ESS Lithium Ion Batteries Lifepo4 5kw 10kw Home Use Energy Storage Battery
  • LFP 200ah Grade A ESS Lithium Ion Batteries Lifepo4 5kw 10kw Home Use Energy Storage Battery
  • LFP 200ah Grade A ESS Lithium Ion Batteries Lifepo4 5kw 10kw Home Use Energy Storage Battery

LFP 200ah Grade A ESS Lithium Ion Batteries Lifepo4 5kw 10kw Home Use Energy Storage Battery

System Type: Wall-mounted
Weight: 95Kg±3kg
Nominal Capacity: 200Ah
Nominal Power: 10.24KWh(95%DOD)
Nominal Voltage: 51.2V
Contact Us
Hybrid Grid
Grid Connection
Specifications
Payment & Shipping Terms
Product Description
Specifications
System Type: Wall-mounted
Weight: 95Kg±3kg
Nominal Capacity: 200Ah
Nominal Power: 10.24KWh(95%DOD)
Nominal Voltage: 51.2V
Grid Connection: Hybrid Grid
Highlight:

10kw Home Use Energy Storage Battery

,

Grade A ESS Lithium Ion Batteries

,

5kw Home Use Energy Storage Battery

Payment & Shipping Terms
Minimum Order Quantity: 2
Price: negotiated price
Packaging Details: solar power station carton packaging
Delivery Time: 5-14 work days
Payment Terms: Western Union, MoneyGram
Supply Ability: 1000+PCS+1000 per week
Product Description

LFP 200ah Grade A ESS Lithium Ion Batteries Lifepo4 5kw 10kw Home Use Energy Storage Battery

  The 51.2V 200Ah battery system is applicable to home energy storage, small or medium sized shopping mall energy storage,which uses 32 pieces of 3.2V 100Ah battery cells in 16s2p configuration.Built-inSeplos smart BMS suppor tmaximumof 16packs of battery in paralleltoachieve high ercapacity.The system can not becon nected in series.And do not mixusea ocell battery with anyother battery brands or models.

  O'Cell is committed to providing high-quality solar inverter solutions that help to power a greener future. With its advanced technology,flexible design, and user-friendly interface, [Inverter Model] is the ideal choice for anyone looking to harness the power of the sun and make the switch to clean, renewable energy.

LFP 200ah Grade A ESS Lithium Ion Batteries Lifepo4 5kw 10kw Home Use Energy Storage Battery 0

Solar Inverter Characteristics

1.C16-cell battery voltage sampling test, with deviation of ±20mV
2.Battery and ambient temperature detection: 4 battery temperature sensors, 1 ambient temperature sensor, and 1 MOS temperature sensor, with a deviation of ±2°C.
3.Battery capacity and cycles: Complete a full charge/discharge cycle to set the actual capacity. The remaining capacity of the battery is monitored with a capacity estimation accuracy within 5% deviation. Additionally, charge and discharge cycle times as well as full charge and discharge cycle times are configurable
4.Intelligent cell balancing: The charging and static balancing strategies can be set flexibly to effectively extend the service life.
5.Communication port: PC or smart front-end can monitor battery pack data, control operation and set parameters through commands such as telemetry, remote signaling, remote adjustment, and remote control. The communication protocol conforms to the requirements of YD/T 1363.3, and realizes cascade communication at the same time.
6.History data recording, saving and reading: Battery condition and alarm information will be recorded and save in real time when there is abnormality in the battery. A maximum of 500 history failure data can be stored.
7.Battery management system parameter setting: battery management system parameters, including cell battery over
voltage/under voltage, battery total voltage over voltage/under voltage, charge and discharge over current, battery high/low temperature, battery capacity, working mode, charge and discharge limit current, can be set in the battery monitoring system.
8.Working mode: charging and discharging current limiting, constant voltage output, direct output and other working modes can be set in the monitoring system
9.Multiple protection functions: hardware protection, battery protection, high and low temperature protection, output short circuit protection, etc.
Items
Specifications
Configuration
4P16S
Nominal Voltage(V)
51.2V
Working Voltage(V)
41.6V~58.4V
Nominal Capacity(Ah)
200Ah
Rated energy(kWh)
10.24KWh
Rated charge/discharge Current(A)
50A @25±2℃
Maximum charging current
100A@25±2℃
Maximum discharge current
100A @25±2℃
Working Temperature
0~40℃(Charge)
-10~40℃(Discharge)
Storage temperature and humidity
-10℃~35℃(Within one month of storage)
25±2℃(Within three months of storage)
Dimension(mm)
920×550×205mm
weight
95Kg±3kg
Cycle life
4800 cycles @25℃
50Acharge and discharge current 90% DOD
IP grade
IP 65
Communication mode
CAN&RS485
Altitude Limited(m)
0-3000m
Humidity(%)
5~80%



LFP 200ah Grade A ESS Lithium Ion Batteries Lifepo4 5kw 10kw Home Use Energy Storage Battery 1


Q: Do you provide after-sales serive?
A: Yes,the warranty is 12 months, if any quality problems on our side in this period, we can send new one as replacement.

Q: Do you accept OEM/ODM?
A: Yes,it is avaliable.

Q:Are you battery real capacity?
A: All of our battery cells with Grade A,100% new and real capacity.

Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 if your order quantity is big.

Q:Do you have MOQ ?
A:No limited. Small order also welcome.More quantity has better price, we will check the best price for you.

Q: What is your term of payment?
A: We adopt T/T,Paypal,Alibaba payment way and so on.
