| Battery Type: | LiFePO4 |
|---|---|
| Output Power Range: | 0-5 KWh |
| System Type: | ALL In ONE |
| Dimension (L*W*H): | 560mm*270mm*605mm |
| Weight: | 56kg |
| Battery Type: | LiFePO4 |
|---|---|
| Output Power Range: | 0-5 KWh |
| System Type: | ALL In ONE |
| Dimension (L*W*H): | 560mm*270mm*605mm |
| Weight: | 56kg |
| Communication Port: | RS485 |
| Protection Class: | IP65 |
| Grid Connection: | Hybrid Grid |
| Rated Capacity: | 120Ah |
| Factory Voltage: | 25V-27V |
| Internal Impedance: | ≤40 MΩ |
| Max Charging Current: | 100A |
| Limited Charging Voltage: | 29.5V |
| Max Discharging Current: | 150A |
| Highlight: | ESS Home Storage Battery,3KW Solar Energy Storage System,120Ah Home Storage Battery |
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | negotiated price |
| Packaging Details: | ESS LiFePO4 Battery Carton |
| Delivery Time: | 5-15 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 per week |

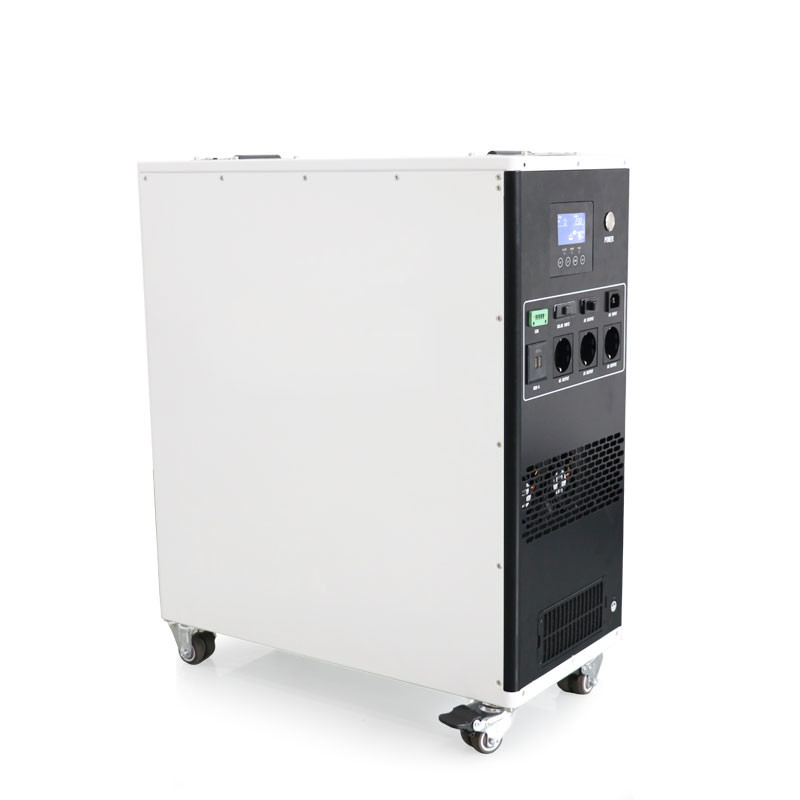

3KW Solar Energy Storage System ESS 120Ah Home Storage Battery
ESS Energy Storage System
Ocell is Global residential ESS Designer and Supplier. We are dedicated to providing high quality and reliable Residential Energy Storage System and C&I Energy Storage System for our all customers all over the world.ESS is very smart and multi-functional with several working modes which can be set by customer and 24hours on time monitoring.
Product Parameters
|
Inverter Parameter
|
|
|
Items
|
Specifications
|
|
AC Voltage
|
230VAC
|
|
Selectable Voltage Range
|
90-280VAV
|
|
Frequency Range
|
50Hz/60Hz (Auto sensing)
|
|
AC Voltage
|
230VAC
|
|
Surge Power
|
280Ah
|
|
AC Voltage
|
6000VA
|
|
Transfer Time
|
20ms
|
|
Wave form
|
Pure Sine Wave
|
|
Conversion Efficiency
|
93%
|
|
MAX.PV Array Power
|
3000W
|
|
Operating Voltage
|
90-450VDC
|
|
Maximum PV Array Open Circuit Voltage
|
450VDC
|
|
Maximum Charging Current
|
80A
|
|
Maximum Efficiency
|
98%
|
|
Battery Voltage
|
25.6VDC
|
|
Floating Charge Voltage
|
29.2VDC
|
|
Overcharge Protection Voltage
|
29.2VDC
|
|
Maximum Charging Current
|
80A
|
|
Operating Temperature
|
-10℃-55℃
|
|
Storage Temperature
|
-15℃-60℃
|
