| Product Model: | IFR32700-6.0Ah |
|---|---|
| Battery Total Height: | 70.5±0.3 Mm |
| Cell Diameter: | 32.2±0.3 Mm |
| Weight: | 140.0±5.0 G |
| Nominal Voltage: | 3.2V |
| Product Model: | IFR32700-6.0Ah |
|---|---|
| Battery Total Height: | 70.5±0.3 Mm |
| Cell Diameter: | 32.2±0.3 Mm |
| Weight: | 140.0±5.0 G |
| Nominal Voltage: | 3.2V |
| Storage Temperature: | Short-term Storage At -20℃ ~ 55℃ (< 3 Months) |
| High Light: | 6000mAh 6Ah Lithium Ion LiFePo4 Battery,6Ah Lithium Ion LiFePo4 Battery,32700 lithium phosphate battery |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | negotiated price |
| Packaging Details: | lifepo4 cell carton packaging |
| Delivery Time: | 5-14 work days |
| Payment Terms: | Western Union, MoneyGram |
| Supply Ability: | 100000 per week |

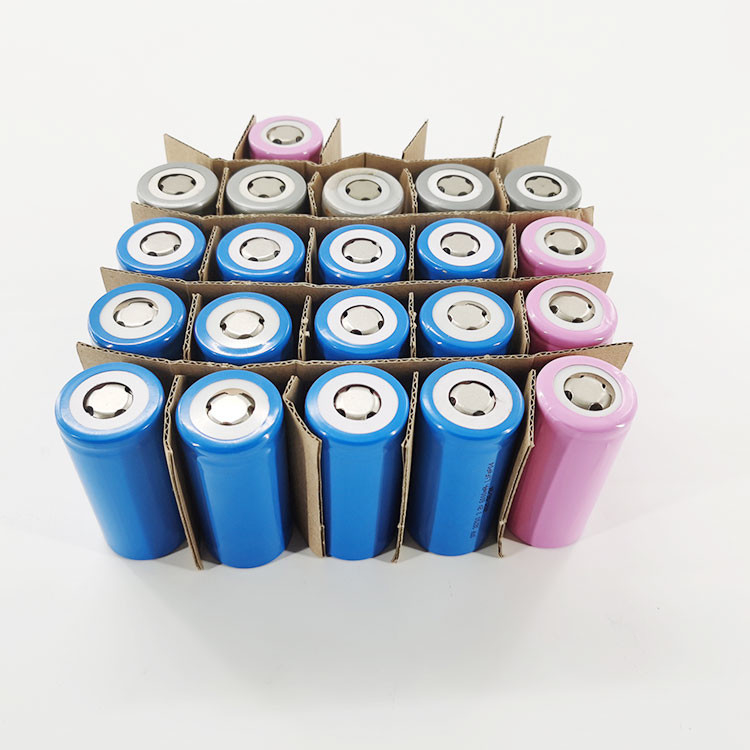

32700 6000mAh 6Ah 80% DOD 4000 Cycle 32700 Phosphate Lithium Ion LiFePo4 Battery
In the process of cell manufacturing, we strive for perfection and continue to optimize production processes to ensure cell yield and batch consistency. Our consistent aim is to treat defect zero tolerance.
All of our lithium iron phosphate power battery series have been approved UL , CB , UN38.3 and other certifications. The cell is safe, reliable and stable. If you have the opportunity to come to China, we welcome you to visit our factory and take you to enjoy Chinese.Looking forward to our cooperation and your arrival
Product Parameters
|
Modol
|
Nominal Capacity
|
Nominal Voltage
|
Max.Discharge Current
|
Maximum discharge current
|
Cycle life
(time)
|
Operating temperature
|
Cell Weight
|
|
IFR-14500EC
|
400mAh
|
3.2V
|
1C
|
3C,5C
|
≥4000
|
-20℃-60℃
|
17g
|
|
IFR-14500EC
|
500mAh
|
3.2V
|
1C
|
3C,5C
|
≥4000
|
-20℃-60℃
|
17g
|
|
IFR-14500EC
|
600mAh
|
3.2V
|
1C
|
3C,5C
|
≥4000
|
-20℃-60℃
|
18g
|
|
IFR-18650PC
|
1100mAh
|
3.2V
|
3C
|
30C,50C
|
≥1000
|
-20℃-60℃
|
38g
|
|
IFR-18650EC
|
1500mAh
|
3.2V
|
1C
|
3C,5C
|
≥4000
|
-20℃-60℃
|
40g
|
|
IFR-18650EC
|
1800mAh
|
3.2V
|
1C
|
3C,5C
|
≥4000
|
-20℃-60℃
|
43g
|
|
IFR-26650PC
|
2500mAh
|
3.2V
|
3C
|
30C,40C
|
≥1000
|
-20℃-60℃
|
83g
|
|
IFR-26650MP
|
3000mAh
|
3.2V
|
2C
|
10C,15C
|
≥2000
|
-20℃-60℃
|
81g
|
|
IFR-26650EC
|
3400mAh
|
3.2V
|
1C
|
3C,5C
|
≥4000
|
-20℃-60℃
|
85g
|
|
IFR-26650EC
|
3800mAh
|
3.2V
|
1C
|
3C,5C
|
≥4000
|
-20℃-60℃
|
90g
|
|
IFR-26650EC
|
4000mAh
|
3.2V
|
1C
|
3C,5C
|
≥4000
|
-20℃-60℃
|
92g
|
|
IFR-26700EC
|
4000mAh
|
3.2V
|
1C
|
1C,3C
|
≥4000
|
-20℃-60℃
|
93g
|
|
IFR-26700EC
|
4500mAh
|
3.2V
|
1C
|
1C,3C
|
≥4000
|
-20℃-60℃
|
95g
|
|
IFR-32700EC
|
6000mAh
|
3.2V
|
1C
|
1C,6C
|
≥2000
|
-20℃-60℃
|
144g
|
|
Please contact me for custom service
|
|||||||
Performance Advantage
All of our lithium iron phosphate power battery series have been approved UL , CB , UN38.3 and other certifications. The cell is safe, reliable and stable. Automatic production line, high product quality and production efficiency, the whole process online monitoring, data traceability,CID safety design.
Product Feature
-Battery pack cycle life is long, in line with low carbon, energy saving, environmental protection values.
-Intelligent PACK power assembly line with MES system.
-The battery string provides high safety performance. When the temperature exceeds the threshold, the battery string automatically starts the protection function.
-The BMS management system runs data monitoring, SOC estimation and data transmission.
-Using lithium iron phosphate battery, high cycle times, safe and reliable.
-Uniform flow design, superior performance.
FAQ
Q: What's the main product?
A: Lithium iron phosphate energy storage battery,Portable power supply,Lithium battery cell,charger,Golf cart batteries
Q: What is overcharge?
A: After charge, tested the batteries' initial state and capacity. Charge to 10.0V at 3C current then charge to 0.01C at CV mode. Observe changes in battery appearance.
Q: What is over discharge?
A: After charge, test the batteries' initial state. When the batteries are normal, discharge to 0V at 0.5C.Observe changes in battery appearance
Q: Can I have a sample order?
A: Yes, we accept sample order to test and check quality. Batteries can be made as require
Q: Do you have MOQ limit?
A: Yes, we have MOQ limit for mass production, but it depends on battery model. Please contact us for details.
Q: How about the lead time?
A: Samples will takes 5-7 business days. Mass production will takes 25-30 days.It depends on quantity.
Q: How about shipping and delivery time?
A: Generally, battery will be shipped via Express,such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days. Or DDP service. delivery time is 11-15 business days. Airline and sea shipping also available.
Q: What about after-sale service?
A: We will offer you 1 year guarantee. If there are any problems, please inform us, we will offer you positive solutions.
Welcome to contact us for samples testing Orders.
