| Nominal Capacity: | 6000mAh / 1C Discharge |
|---|---|
| Internal Resistance: | ≤8.0mΩ (AC 1000 Hz, 50% SOC) |
| Nominal Voltage: | 3.2 V |
| Maximum Charge current: | 6A |
| Maximum Continuous Discharge Current: | 18A |
| Nominal Capacity: | 6000mAh / 1C Discharge |
|---|---|
| Internal Resistance: | ≤8.0mΩ (AC 1000 Hz, 50% SOC) |
| Nominal Voltage: | 3.2 V |
| Maximum Charge current: | 6A |
| Maximum Continuous Discharge Current: | 18A |
| Working Temperature: | Charge: 0°C ~ 55°C Discharge: -10°C ~60°C |
| High Light: | LIFePO4 Cylindrical Lithium Ion Battery,32700 Cylindrical Lithium Ion Battery,3.2V Lithium Ion LiFePo4 Battery |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | negotiated price |
| Packaging Details: | lifepo4 cell carton packaging |
| Delivery Time: | 5-14 work days |
| Payment Terms: | Western Union, MoneyGram |
| Supply Ability: | 100000 per week |

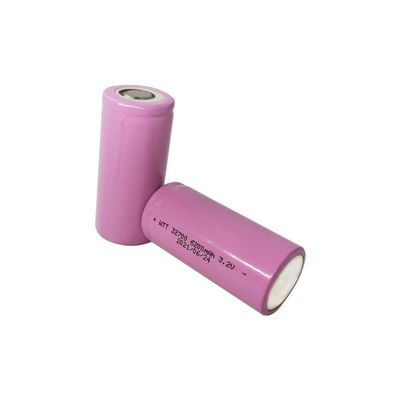

LIFePO4 32700 6Ah Battery Cylindrical Lithium ion 32700 3.2V 6Ah Battery
In the process of cell manufacturing, we strive for perfection and continue to optimize production processes to ensure cell yield and batch consistency. Our consistent aim is to treat defect zero tolerance.
All of our lithium iron phosphate power battery series have been approved UL , CB , UN38.3 and other certifications. The cell is safe, reliable and stable. If you have the opportunity to come to China, we welcome you to visit our factory and take you to enjoy Chinese.Looking forward to our cooperation and your arrival
32700 LiFePo4 Battery Cell Parameters
|
Modol
|
Nominal Capacity
|
Nominal Voltage
|
Max.Discharge Current
|
Maximum discharge current
|
Cycle life
(time)
|
Operating temperature
|
Cell Weight
|
|
IFR-14500EC
|
400mAh
|
3.2V
|
1C
|
3C,5C
|
≥4000
|
-20℃-60℃
|
17g
|
|
IFR-14500EC
|
500mAh
|
3.2V
|
1C
|
3C,5C
|
≥4000
|
-20℃-60℃
|
17g
|
|
IFR-14500EC
|
600mAh
|
3.2V
|
1C
|
3C,5C
|
≥4000
|
-20℃-60℃
|
18g
|
|
IFR-18650PC
|
1100mAh
|
3.2V
|
3C
|
30C,50C
|
≥1000
|
-20℃-60℃
|
38g
|
|
IFR-18650EC
|
1500mAh
|
3.2V
|
1C
|
3C,5C
|
≥4000
|
-20℃-60℃
|
40g
|
|
IFR-18650EC
|
1800mAh
|
3.2V
|
1C
|
3C,5C
|
≥4000
|
-20℃-60℃
|
43g
|
|
IFR-26650PC
|
2500mAh
|
3.2V
|
3C
|
30C,40C
|
≥1000
|
-20℃-60℃
|
83g
|
|
IFR-26650MP
|
3000mAh
|
3.2V
|
2C
|
10C,15C
|
≥2000
|
-20℃-60℃
|
81g
|
|
IFR-26650EC
|
3400mAh
|
3.2V
|
1C
|
3C,5C
|
≥4000
|
-20℃-60℃
|
85g
|
|
IFR-26650EC
|
3800mAh
|
3.2V
|
1C
|
3C,5C
|
≥4000
|
-20℃-60℃
|
90g
|
|
IFR-26650EC
|
4000mAh
|
3.2V
|
1C
|
3C,5C
|
≥4000
|
-20℃-60℃
|
92g
|
|
IFR-26700EC
|
4000mAh
|
3.2V
|
1C
|
1C,3C
|
≥4000
|
-20℃-60℃
|
93g
|
|
IFR-26700EC
|
4500mAh
|
3.2V
|
1C
|
1C,3C
|
≥4000
|
-20℃-60℃
|
95g
|
|
IFR-32700EC
|
6000mAh
|
3.2V
|
1C
|
1C,6C
|
≥2000
|
-20℃-60℃
|
144g
|
|
Please contact me for custom service
|
|||||||
Performance Advantage
All of our lithium iron phosphate power battery series have been approved UL , CB , UN38.3 and other certifications. The cell is safe, reliable and stable. Automatic production line, high product quality and production efficiency, the whole process online monitoring, data traceability,CID safety design.
Product Feature
- Battery pack cycle life is long, in line with low carbon, energy saving, environmental protection values.
- Intelligent PACK power assembly line with MES system.
- The battery string provides high safety performance. When the temperature exceeds the threshold, the battery string automatically starts the protection function.
- The BMS management system runs data monitoring, SOC estimation and data transmission.
- Using lithium iron phosphate battery, high cycle times, safe and reliable.
- Uniform flow design, superior performance.
32700 LiFePo4 Battery Description:
1. Description of model definition
Product model: IFR32700-6.0Ah
Battery model description:32700 cylindrical lithium iron phosphate secondary battery
2. Standard appearance, code spraying and size:
O’Cell products have standard appearance, spurting code and size. If your company needs to customize the appearance, spurting code and size, please directly communicate with business. If there is no clear requirement for customization, the appearance, spurting code and size should refer to O’Cell standard operation
Battery Standard appearance:
Cylindrical battery, the thickness of the battery outsourcing is 0.1mm thick casing, the color and material can be customized by the customer, the battery according to the code spraying on the casing, distinguish the positive and negative battery.
Standard dimensions of battery :(dimensions include 0.1mm thick casing)
| Battery total height | 70.5±0.3 mm |
| Cell diameter | 32.2±0.3 mm |
3. Product standard performance parameters
For battery tests in this specification without explicit instructions, standard charging and discharging method is used in normal temperature environment. Ambient standard of normal temperature: temperature 25±5℃, humidity: 15 ~ 90%RH, air pressure: 86 ~ 106Kpa.The standard charging and discharging mode shall refer to 2.4 in the specification.
Q:Can I have a sample order?
A:Yes, we welcome sample order to test and check quality.
Q:What about the lead time?
A:Sample needs 5-10 days, mass production time needs 3-5 weeks, it depends on order quantity.
Q:Do you have any MOQ limit?
A:Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q:How do you ship the goods and how long does it take to arrive?
A. We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q:How to proceed with an order?
A:Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.
Q:Is it OK to print my logo on the product?
A:Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
