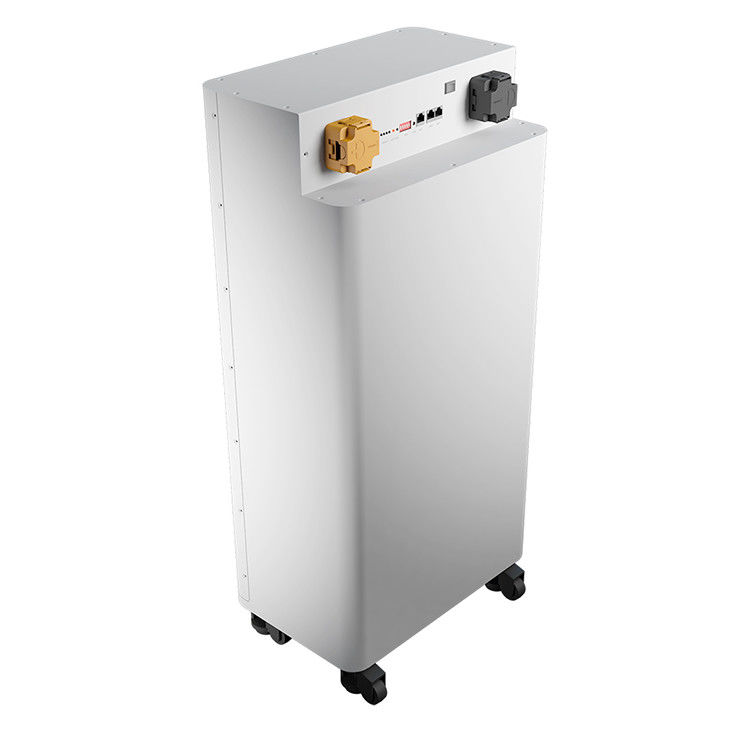

51.2v Lifepo4 Solar Power Battery Storage 280ah Lithium Iron Grade A
51.2v Lifepo4 Solar Power Battery Storage 280ah Lithium Iron Grade A
51.2v Lifepo4 Solar Power Battery Storage 280ah Lithium Iron Grade A
  • 51.2v Lifepo4 Solar Power Battery Storage 280ah Lithium Iron Grade A
  • 51.2v Lifepo4 Solar Power Battery Storage 280ah Lithium Iron Grade A

51.2v Lifepo4 Solar Power Battery Storage 280ah Lithium Iron Grade A

Configuration: 1P16S
Working Voltage(V): 42V~58.4V
Nominal Capacity(Ah): 280Ah
Powero: 5kw
Contact Us
Specifications
Payment & Shipping Terms
Product Description
Specifications
Configuration: 1P16S
Working Voltage(V): 42V~58.4V
Nominal Capacity(Ah): 280Ah
Powero: 5kw
High Light:

51.2v solar power battery storage

,

lifepo4 solar power battery storage
Payment & Shipping Terms
Minimum Order Quantity: 10
Price: negotiated price
Packaging Details: solar power station carton packaging
Delivery Time: 5-14 work days
Payment Terms: Western Union, MoneyGram
Supply Ability: 1000+PCS+1000 per week
Product Description

Home Storage Battery 51.2V LiFePo4 Battery 280Ah Lithium Iron Grade A Battery for Solar System

This battery pack System,is applicable both for residential and commercial energy storage system, which is assembled with 3.2V 280Ah lithium iron phosphate cell in16S1P configuration,and accompany with Smart BMS.Eachpack support 16 packs in parallel to easily expand capacity.Do not mix parallel the battery packs of different brands or models.

  O'Cell is committed to providing high-quality solar inverter solutions that help to power a greener future. With its advanced technology,flexible design, and user-friendly interface, [Inverter Model] is the ideal choice for anyone looking to harness the power of the sun and make the switch to clean, renewable energy.

51.2v Lifepo4 Solar Power Battery Storage 280ah Lithium Iron Grade A 0

Solar Inverter Characteristics

1.Battery voltage calculation: 16 battery voltage sampling test, deviation ± 20mV
2.Battery and ambient temperature detection: 4 battery temperature sensors, 1 ambient temperature sensor, and 1 MOS temperature sensor, with a deviation of ±2°C.
3.Battery capacity and cycles: Complete a full charge/discharge cycle to set the actual capacity. The remaining capacity of the battery is monitored with a capacity estimation accuracy within 5% deviation. Additionally, charge and discharge cycle times as well as full charge and discharge cycle times are configurable
4.Intelligent cell balancing: The charging and static balancing strategies can be set flexibly to effectively extend the service life.
5.Communication port: PC or smart front-end can monitor battery pack data, control operation and set parameters through commands such as telemetry, remote signaling, remote adjustment, and remote control. The communication protocol conforms to the requirements of YD/T 1363.3, and realizes cascade communication at the same time.
Items
Specifications
Rated energy(kWh)
14.336KWh
Configuration
1P16S
Nominal Voltage(V)
51.2V
Working Voltage(V)
42V~58.4V
Nominal Capacity(Ah)
280Ah
Rated charge/discharge Current(A)
100A/200A @25±2℃
Maximum charging current
200A@25±2℃
Maximum discharge current
200A@25±2℃
Working Temperature
0～40℃(Charge)
-20～40℃(Discharge)
Storage temperature and humidity
-10℃~35℃(Within one month of storage)
25±2℃(Within three months of storage)
Humidity(%)
5~95%
Altitude Limited(m)
0-3000m
Weight(Kg)
113Kg±3kg
Dimension(mm)
817×412×267mm
Storage temperature and humidity
-10℃~35℃(Within one month of storage)
25±2℃(Within three months of storage)
65%±20%RH
Cycle life
6000 cycles @25℃
50ACharge and discharge current 80%DOD
Communication mode
CAN&RS485



51.2v Lifepo4 Solar Power Battery Storage 280ah Lithium Iron Grade A 1

1. What is an energy storage battery?

An energy storage battery is a device that stores electrical energy in the form of chemical energy and releases it as electrical energy when needed. It is used to store surplus energy generated from renewable sources or during low-demand periods for later use.

2. What are the common types of energy storage batteries?
Common types of energy storage batteries include lithium-ion, lead-acid, nickel-cadmium, and flow batteries. Lithium-ion batteries are the most widely used in residential and commercial applications.

3. Why are energy storage batteries important?
Energy storage batteries play a crucial role in stabilizing the electrical grid, managing energy supply and demand, and increasing the efficiency of renewable energy sources by storing excess energy for use during peak demand periods.

4. How long do energy storage batteries last?
The lifespan of an energy storage battery varies depending on the type and usage but typically ranges from 5 to 20 years.
Lithium-ion batteries often have a lifespan of 10-15 years.

5. Can energy storage batteries be used for off-grid applications?
Yes, energy storage batteries are commonly used in off-grid and remote locations to provide a reliable source of electricity when there is no access to the main grid.

6. What's your MOQ(minimum order quantity)?
No limited. Sample order and trail order are accepted.
