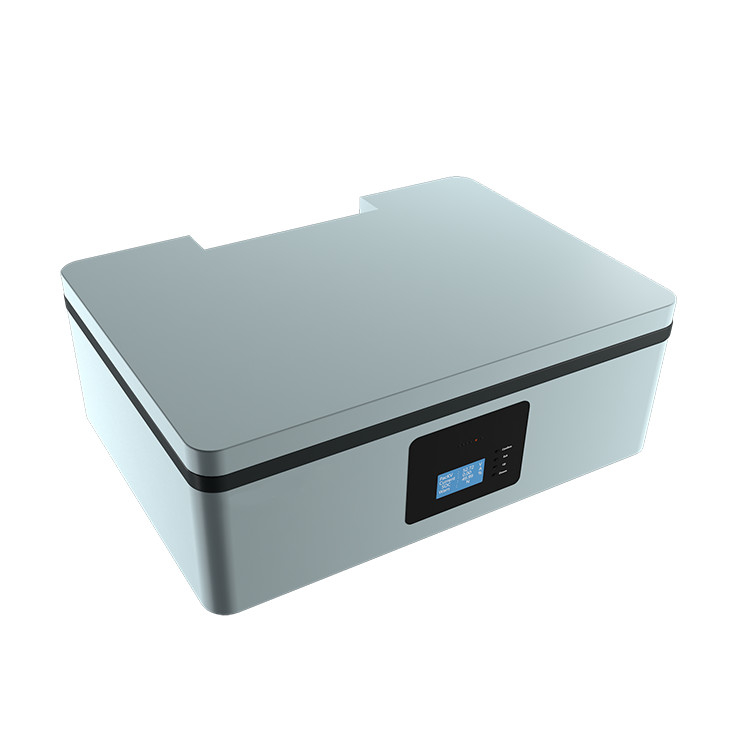

5kwh Home Energy Storage System 51.2v 100ah All In One ESS Lifepo4 Battery Pack
5kwh Home Energy Storage System 51.2v 100ah All In One ESS Lifepo4 Battery Pack
5kwh Home Energy Storage System 51.2v 100ah All In One ESS Lifepo4 Battery Pack
5kwh Home Energy Storage System 51.2v 100ah All In One ESS Lifepo4 Battery Pack
  • 5kwh Home Energy Storage System 51.2v 100ah All In One ESS Lifepo4 Battery Pack
  • 5kwh Home Energy Storage System 51.2v 100ah All In One ESS Lifepo4 Battery Pack
  • 5kwh Home Energy Storage System 51.2v 100ah All In One ESS Lifepo4 Battery Pack

5kwh Home Energy Storage System 51.2v 100ah All In One ESS Lifepo4 Battery Pack

Product Name: ESS 100Ah LiFePo4 Battery
Weight: 48Kg±3kg
Dimension (L*W*H): 618*450*208.5mm
Working Voltage Range: 42V~58.4V
Nominal Voltage: 51.2V
Contact Us
5.12KWh
Rated Energy(kWh)
Specifications
Payment & Shipping Terms
Product Description
Specifications
Product Name: ESS 100Ah LiFePo4 Battery
Weight: 48Kg±3kg
Dimension (L*W*H): 618*450*208.5mm
Working Voltage Range: 42V~58.4V
Nominal Voltage: 51.2V
Rated Energy(kWh): 5.12KWh
High Light:

5kwh Home Energy Storage System

,

5kwh home battery

,

51.2v 100ah Lifepo4 Battery Pack
Payment & Shipping Terms
Minimum Order Quantity: 50
Price: negotiated price
Packaging Details: solar power station carton packaging
Delivery Time: 5-14 work days
Payment Terms: Western Union, MoneyGram
Supply Ability: 1000+PCS+1000 per week
Product Description

5kwh Energy Storage System 51.2v 100ah All In One Ess Lifepo4 Battery Pack

  The 51.2V 200Ah battery system is applicable to home energy storage, small or medium sized shopping mall energy storage,which uses 32 pieces of 3.2V 50Ah battery cells in 16s2p configuration.Built-inSeplos smart BMS suppor tmaximumof 16packs of battery in paralleltoachieve high ercapacity.The system can not becon nected in series.And do not mixusea ocell battery with anyother battery brands or models.

  O'Cell is committed to providing high-quality solar inverter solutions that help to power a greener future. With its advanced technology,flexible design, and user-friendly interface, [Inverter Model] is the ideal choice for anyone looking to harness the power of the sun and make the switch to clean, renewable energy.

5kwh Home Energy Storage System 51.2v 100ah All In One ESS Lifepo4 Battery Pack 0

Solar Inverter Characteristics

1.Battery and ambient temperature detection: 4 battery temperature sensors, 1 ambient temperature sensor, and 1 MOS temperature sensor, with a deviation of ±2°C.
2.Battery capacity and cycles: Complete a full charge/discharge cycle to set the actual capacity. The remaining capacity of the battery is monitored with a capacity estimation accuracy within 5% deviation. Additionally, charge and discharge cycle times as well as full charge and discharge cycle times are configurable
3.Intelligent cell balancing: The charging and static balancing strategies can be set flexibly to effectively extend the service life.
4.Communication port: PC or smart front-end can monitor battery pack data, control operation and set parameters through commands such as telemetry, remote signaling, remote adjustment, and remote control. The communication protocol conforms to the requirements of YD/T 1363.3, and realizes cascade communication at the same time.
5.Communication interface: PC or intelligent front-end can monitor battery data, control operation and set parameters through telemetry, remote signaling, remote adjustment, remote control and other commands. The communication protocol meets the requirements of YD/T 1363.3 and realizes cascade communication
6.History data recording, saving and reading: Battery condition and alarm information will be recorded and save in real time when there is abnormality in the battery. A maximum of 500 history failure data can be stored.
7.Battery management system parameter setting: battery management system parameters, including cell battery over
voltage/under voltage, battery total voltage over voltage/under voltage, charge and discharge over current, battery high/low temperature, battery capacity, working mode, charge and discharge limit current, can be set in the battery monitoring system.
8.Working mode: charging and discharging current limiting, constant voltage output, direct output and other working modes can be set in the monitoring system
9.Multiple protection functions: hardware protection, battery protection, high and low temperature protection, output short circuit protection, etc.

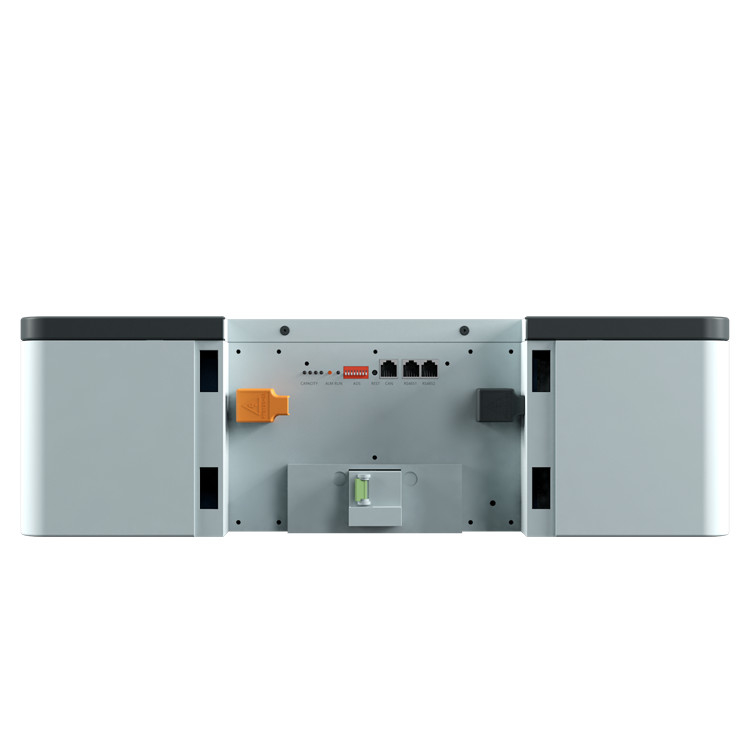

5kwh Home Energy Storage System 51.2v 100ah All In One ESS Lifepo4 Battery Pack 15kwh Home Energy Storage System 51.2v 100ah All In One ESS Lifepo4 Battery Pack 2
Items
Specifications
Rated energy(kWh)
5.12KWh
Configuration
2P16S
Nominal Voltage(V)
51.2V
Working Voltage(V)
42V~58.4V
Nominal Capacity(Ah)
100Ah
Rated charge/discharge Current(A)
50A@25±2℃
Maximum charging current
100A@25±2℃
Maximum discharge current
100A@25±2℃
Working Temperature
0～40℃(Charge) -20～40℃(Discharge)
Humidity(%)
5~95%
Altitude Limited(m)
0-3000m
Dimension(mm)
618×450×208.5mm
Storage temperature and humidity
-10℃~35℃(Within one month of storage)
25±2℃(Within three months of storage)
65%±20%RH
weight
48kg±3kg
cycle life
6000 cycles @25℃
50ACharge and discharge current 80%DOD
Communication mode
CAN&RS485

1. What is an energy storage battery?

An energy storage battery is a device that stores electrical energy in the form of chemical energy and releases it as electrical energy when needed. It is used to store surplus energy generated from renewable sources or during low-demand periods for later use.

2. What are the common types of energy storage batteries?
Common types of energy storage batteries include lithium-ion, lead-acid, nickel-cadmium, and flow batteries. Lithium-ion batteries are the most widely used in residential and commercial applications.

3. Why are energy storage batteries important?
Energy storage batteries play a crucial role in stabilizing the electrical grid, managing energy supply and demand, and increasing the efficiency of renewable energy sources by storing excess energy for use during peak demand periods.

4. How long do energy storage batteries last?
The lifespan of an energy storage battery varies depending on the type and usage but typically ranges from 5 to 20 years.
Lithium-ion batteries often have a lifespan of 10-15 years.

5. Are energy storage batteries environmentally friendly?
Energy storage batteries can be environmentally friendly, especiallywhen used with renewable energy sources. However, it's essential to consider the environmental impact of battery production and disposal.

6.Do you have any MOQ?
Yes,we have MOQ,it depends on different models.Most products 1-10pcs sample order is available.Lowest MOQ 1 pc
