Home / Off Grid Solar Hybrid Inverter /
3KW 5KW 6KW 10KW 15KW MPPT Solar Inverter , Multiple Parallel Solar Inverters
3KW 5KW 6KW 10KW 15KW MPPT Solar Inverter , Multiple Parallel Solar Inverters
3KW 5KW 6KW 10KW 15KW MPPT Solar Inverter , Multiple Parallel Solar Inverters
  • 3KW 5KW 6KW 10KW 15KW MPPT Solar Inverter , Multiple Parallel Solar Inverters
  • 3KW 5KW 6KW 10KW 15KW MPPT Solar Inverter , Multiple Parallel Solar Inverters

3KW 5KW 6KW 10KW 15KW MPPT Solar Inverter , Multiple Parallel Solar Inverters

Product Name: Solar Inverter
Battery Type: Sealed/Flood/GEL/LFP/Ternary
Battery Voltage Range: 40Vdc~60Vdc±0.6Vdc
Hybrid Charging Maximum Charing Current: 80A
Rated Battery Input Voltage: 48V(Minimum Startup Voltage 44V)
Contact Us
Pure Sine Wave
Output Voltage Waveform
Specifications
Payment & Shipping Terms
Product Description
Specifications
Product Name: Solar Inverter
Battery Type: Sealed/Flood/GEL/LFP/Ternary
Battery Voltage Range: 40Vdc~60Vdc±0.6Vdc
Hybrid Charging Maximum Charing Current: 80A
Rated Battery Input Voltage: 48V(Minimum Startup Voltage 44V)
Output Voltage Waveform: Pure Sine Wave
High Light:

3KW MPPT Solar Inverter

,

15KW MPPT Solar Inverter

,

MPPT Multiple Parallel Solar Inverters

Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiated price
Packaging Details: solar inverter packaging
Delivery Time: 5-14 work days
Payment Terms: Western Union, MoneyGram
Supply Ability: 1000+PCS+1000 per week
Product Description

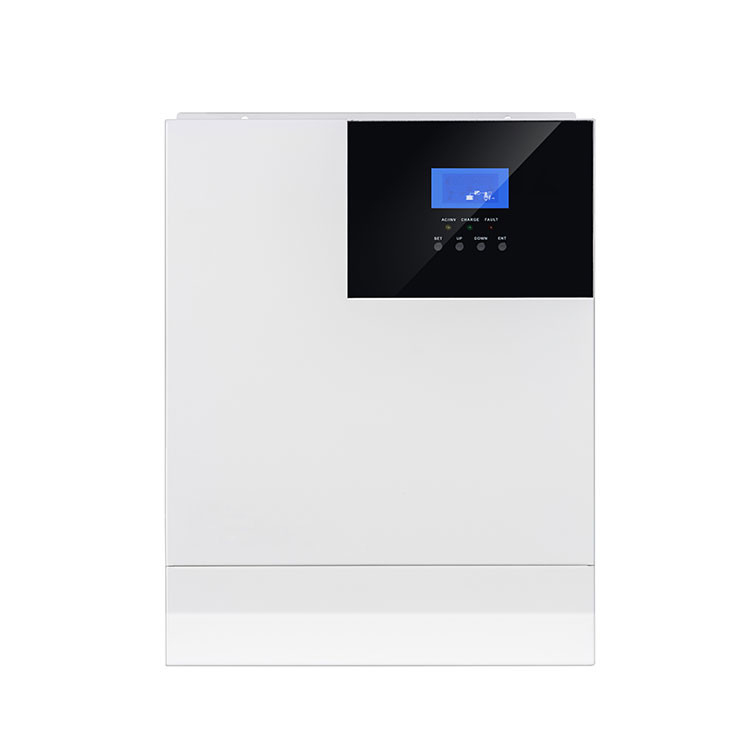

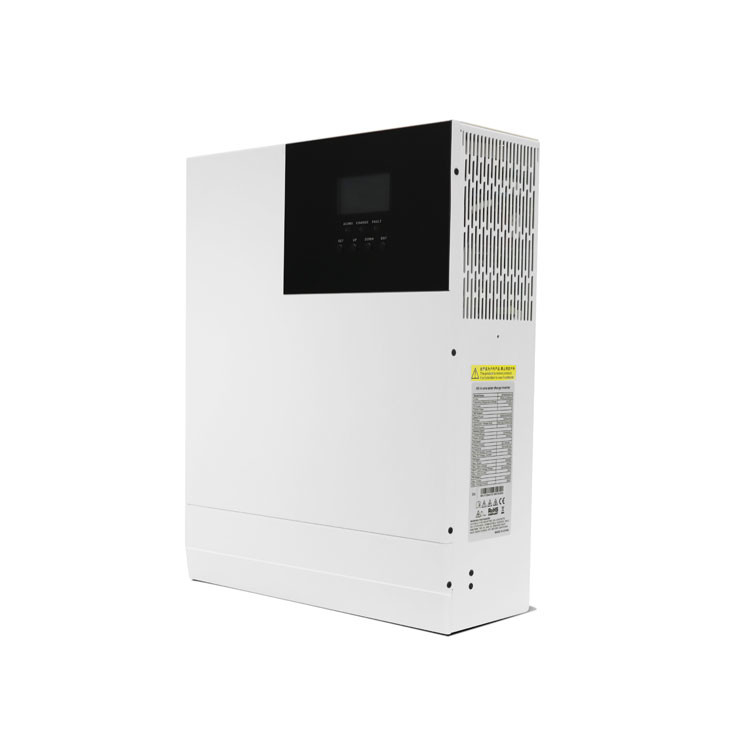

MPPT Solar Inverter 3KW 5KW 6KW 10KW 15KW Multiple Parallel Solar Inverters
  HFP4850S80-H is a high-performance solar inverter designed to meet the needs of residential and commercial photovoltaic (PV) systems. With its advanced technology, flexible design, and user-friendly interface, this inverter provides a reliable and efficient solution for harnessing the power of the sun.

  O'Cell is committed to providing high-quality solar inverter solutions that help to power a greener future. With its advanced technology,flexible design, and user-friendly interface, [Inverter Model] is the ideal choice for anyone looking to harness the power of the sun and make the switch to clean, renewable energy.
3KW 5KW 6KW 10KW 15KW MPPT Solar Inverter , Multiple Parallel Solar Inverters 0

Solar Inverter Parameters

Model HFP4850S80-H
Battery Input
Battery type Sealed,Flood,GEL,LFP,Ternary
Rated Battery Input Voltage 48V(Minimum Startup Voltage 44V)
Hybrid Charging Maximum Charing Current 80A
Battery Voltage Range 40Vdc~60Vdc±0.6Vdc(Undervoltage Warning/Shutdown Voltage/Overvoltage Warning/Overvoltage Recovery...)
Solar Input
Maximum PV Open-Circuit Voltage 500Vdc
PV Working Voltage Range 120-500Vdc
MPPT Voltage Range 120-450Vdc
Maximum PV Input Current 22A
Maximum PV Input Power 5500W
Maximum PV Charging Current 80A
AC Input(generator/grid)
Mains Maximum Charging Current 60A
Rated Input Voltage 220/230Vac
Input Voltage Range UPS Mains Mode:(170Vac~280Vac)±2%
APL Generator Mode:(90Vac~280Vac)±2%
Frequency 50Hz/60Hz(Automatic Detection)
Mains Charing Efficiency >95%
Switch Time(bypass and inverter) 10ms(Typical Value)
Maximum Bypass Overload Current 40A
AC Output
Output Voltage Waveform Pure Sine Wave
Rated Output Voltage(Vac) 230Vac(200/208/220/240Vac)
Rated Output Power(VA) 5000(4350/4500/4750/5000)
Rated Output Power(W) 5000(4350/4500/4750/5000)
Peak Power 10000VA
On-load Motor Capacity 4HP
Output Frequency Range(HZ) 50Hz±0.3Hz/60Hz±0.3Hz
Maximum Efficiency >92%
No-load Loss Non Energy-saving Mode:≤50W Energy-saving Mode:≤25W(Manual Setup)
General
Number of parallel/split phases 1-6PCS
Certificate CE(IEC62109-1)/CETL(UL 1741 C22.2 NO.107.1)
EMC Certification Level EN61000,C2
Working Temperature Range -10℃~55℃
Storage Temperature Range -25℃~60℃
Humidity Range 5% to 95%(Conformal Coating Protection)
Dimensions 426mm*322mm*124mm

Solar Inverter Size
3KW 5KW 6KW 10KW 15KW MPPT Solar Inverter , Multiple Parallel Solar Inverters 1
Q: What is a solar inverter?

A: A solar inverter is an electronic device that converts the direct current (DC) electricity
generated by solar panels into alternating current (AC) electricity, which can be used by homes and businesses.

Q: What are the different types of solar inverters?
A: There are two main types of solar inverters: string inverters and
microinverters. String inverters are connected to multiple solar panels and convert the combined DC output into AC. Microinverters are connected to individual solar panels and convert the DC output from each panel into AC.

Q: How does a solar inverter work?
A: A solar inverter takes the DC electricity generated by the solar panels and converts it into
AC electricity using electronic circuitry. This AC electricity can then be used by homes and businesses, or fed back into the
grid.

Q: What is the difference between a grid-tied and off-grid solar inverter?
A: A grid-tied solar inverter is connected to the
electrical grid and sends excess energy back to the grid when the solar panels produce more energy than is being used. An off-grid solar inverter is not connected to the electrical grid and must store excess energy in batteries for later use.

Q: What are the benefits of a solar inverter?
A: Solar inverters have several benefits, including:
-Increased energy efficiency: By converting DC to AC, solar inverters increase the efficiency of the solar panels and allow for more energy to be generated and used.
-Improved safety: Solar inverters are designed to ensure that the electricity generated by the solar panels is safe for homes and businesses to use.
-Monitoring capabilities: Many solar inverters come equipped with monitoring capabilities, allowing homeowners to track theirenergy production and usage.
Q: What should I look for when choosing a solar inverter?
A: When choosing a solar inverter, consider the following factors:
-Compatibility with your solar panel system
-Efficiency and reliability of the inverter
-Monitoring capabilities
-Warranty and customer support
-Cost and budget.
