| Product Name: | Home Energy Storage System |
|---|---|
| Battery Rated Voltage: | 51.2V |
| Type: | Solar Inverter And Battery 2 In 1 |
| Maximum Output Power: | 5kw |
| Solar Charge Type: | MPPT |
| Product Name: | Home Energy Storage System |
|---|---|
| Battery Rated Voltage: | 51.2V |
| Type: | Solar Inverter And Battery 2 In 1 |
| Maximum Output Power: | 5kw |
| Solar Charge Type: | MPPT |
| Cycle Life: | 6000 Cycles At 80% DOD |
| PV Operating Voltage Range: | 120~500V |
| High Light: | 48v 200ah renewable energy storage battery,stackable renewable energy storage battery,200ah 51.2v home battery storage |
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | negotiated price |
| Packaging Details: | solar power station carton packaging |
| Delivery Time: | 5-14 work days |
| Payment Terms: | Western Union, MoneyGram |
| Supply Ability: | 1000+PCS+1000 per week |

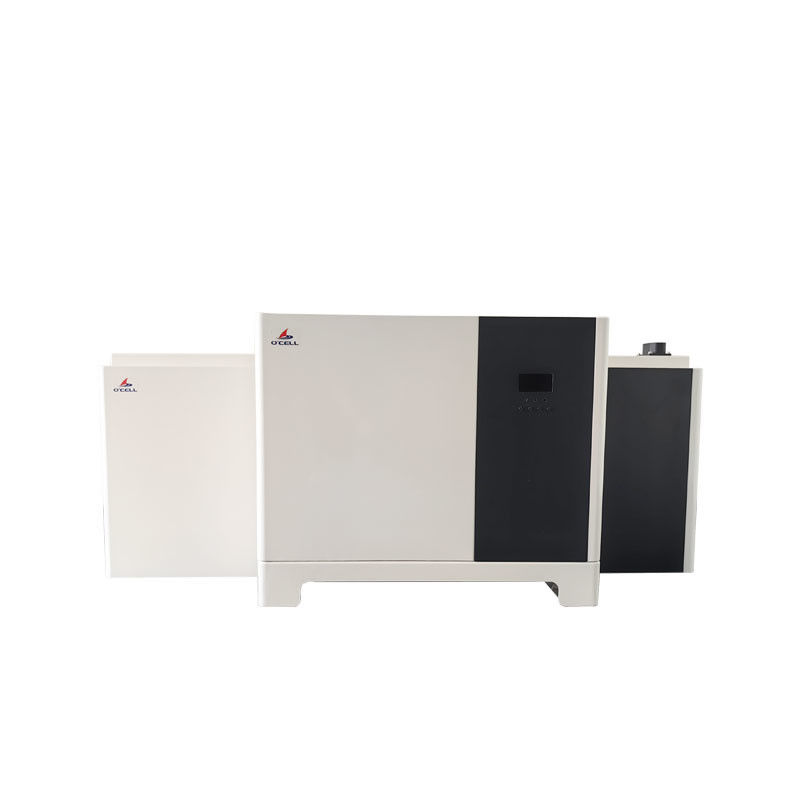

48V Home Battery Storage 48v 200ah 51.2V Stackable Portable Renewable Energy Storage Battery
In the process of cell manufacturing, we strive for perfection and continue to optimize production processes to ensure cell yield and batch consistency. Our consistent aim is to treat defect zero tolerance.
ESS Parameters
|
|
OCESS-5K-5K-A2
|
OCESS-5K-10K-A2
|
OCESS-10K-15K-A2
|
|
BATTERY
|
|
|
|
|
Battery Module
|
1
|
2
|
3
|
|
Battery Energy
|
5.12kWh
|
10.24kWh
|
15.36kWh
|
|
Battery Capacity
|
100Ah
|
200Ah
|
300Ah
|
|
Weight
|
83kg
|
135kg
|
187kg
|
|
Dimension Lx DxH
|
600 x 165 x 840mm
|
600 x 165 x 1260mm
|
600 x 165 x 1260mm
|
|
Solar Charge Type
|
MPPT
|
||
|
Battery Rated Voltage
|
51.2V
|
||
|
Maximum Output Power
|
5KW
|
||
|
PV Charging Current Range
|
0~80A
|
||
|
PV Operating Voltage Range
|
120~500V
|
||
|
MPPT Voltage Range
|
120~450V
|
||
|
AC CHARGE
|
|
|
|
|
Maximum Charge Power
|
3150W
|
||
|
AC Charging Current Range
|
0~60A
|
||
|
Rated Input Voltage
|
220/230Vac
|
||
|
lnput Voltage Range
|
90~280Vac
|
||
|
AC OUTPUT
|
|
|
|
|
Rated Output Power
|
5KW
|
||
|
Maximum Output Current
|
30A
|
||
|
Frequency
|
50Hz
|
||
|
Overload Current
|
35A
|
||
|
Maximum Peak Power
|
10KVA
|
||
|
Power Factor
|
1
|
||
|
Rated Output Voltage (VAC)
|
230Vac
|
||
|
Auto Switch Period
|
<10ms
|
||
|
THD
|
3%
|
||
|
GENERAL DATA
|
|
|
|
|
Communication
|
RS485/CAN/WIFI(optional)
|
||
|
Storage time / temperature
|
6 months @25℃ ;3 months @35℃ ;1 months @45℃
|
||
|
Charging temperature range
|
0~45℃
|
||
|
Discharging temperature range
|
-10~45℃
|
||
|
Operation Humidity
|
5% ~ 85%
|
||
|
Nominal Operation Altitude
|
<2000m
|
||
|
Cooling Mode
|
Electric Fan
|
||
|
Noise
|
60DB
|
||
|
Cycle Life
|
6000 cycles at 80% DOD
|
||
|
Calendar Life
|
10 years
|
||
|
Ingress Protection Rating
|
IP20
|
||
|
Recommended Operation Environment
|
Indoor
|
||
|
Installation Method
|
Floor Mounting
|
||
|
Certification
|
UN38.3, MSDS
|
||
